Alloy Rim Cutting Machine
CH-80-02A
1 set
Shenzhen Sea Port of China
Quantity
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||
Bicycle Rim Machine Product Introduction | ||||||||

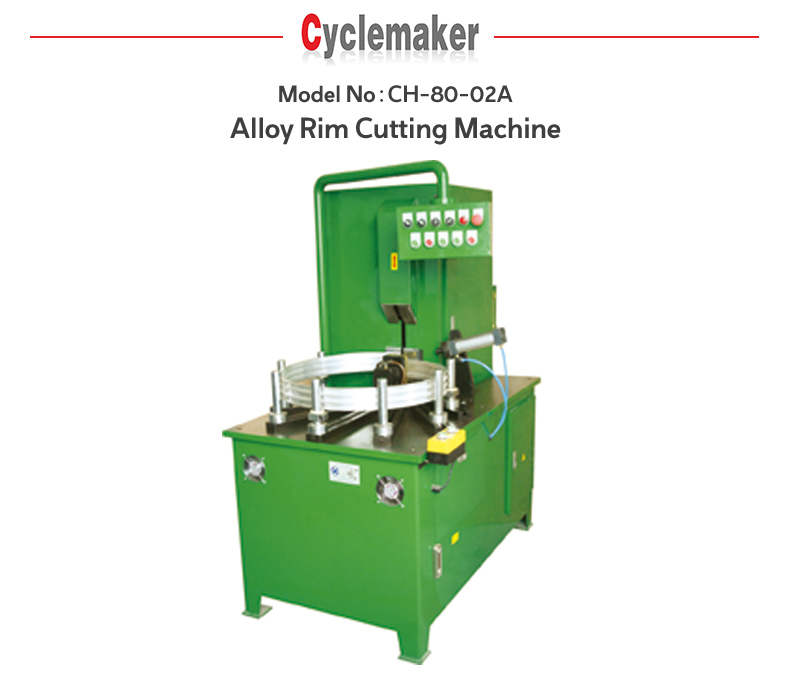

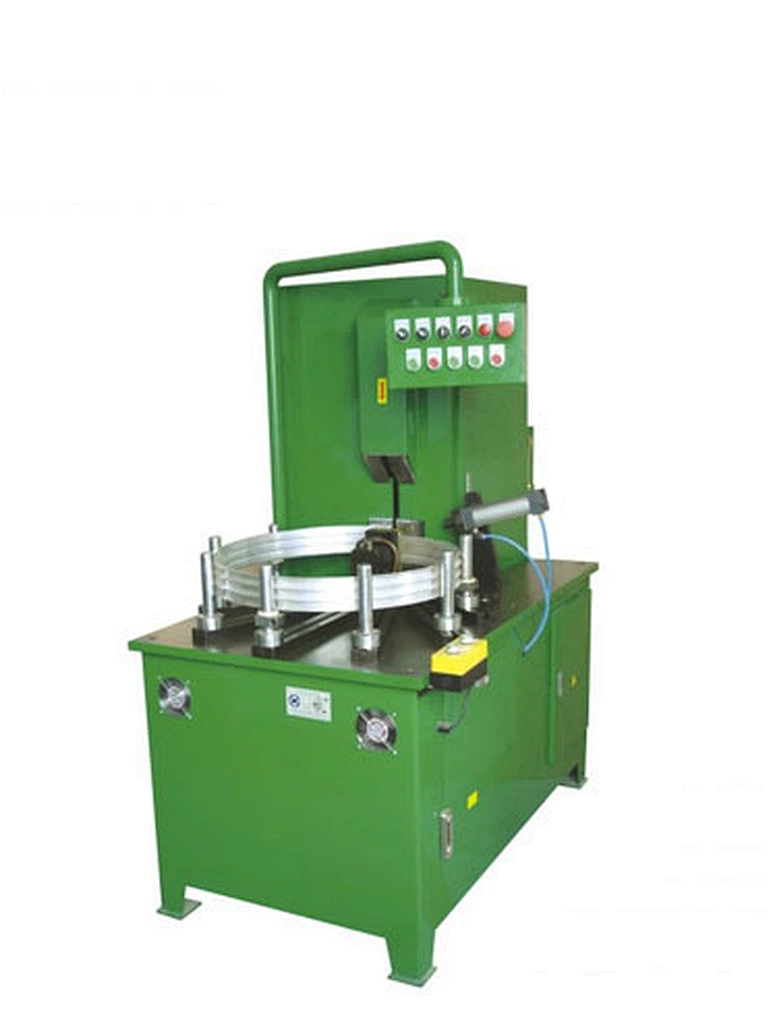

| Alloy Rim Cutting Machine | Model NO.:CH-80-02A | |||||||
Bicycle Rim Machine with cutting Description: | ||||||||
1. This kind of Bicycle Rim Machine is used for cutting alloy profiles,saw cuts the spiral 3 rims unit into 3 individual rims, 6 adjustable posts; | ||||||||
2. Alloy Rim Cutting Machine with high speed single cut to ensure the clean and flat cutting face on Alloy Rim; | ||||||||
3. Bicycle Rim Machine: Clamping mold of rim cutting machine can be customized. | ||||||||
Bicycle Rim Machine | Alloy Rim Cutting Machine | |||||||
Function | Cutting Alloy Rim | |||||||
Application | Alloy Rim after rolling | |||||||
Dia. of rim | 24"~28" | |||||||
Dia.of blade | Φ305 mm | |||||||
Capacity | 400~500 PCS/HR | |||||||
Operation mode | Semi-automatic | |||||||
POWER | 3.7 KW | |||||||
Voltage | 3P 380V 50Hz | |||||||
Control Mode | PLC | |||||||
Start Mode | By press button | |||||||
Hydraulic pressure of working | 3 MPa | |||||||
Max.System hydraulic pressure | 7 MPa | |||||||
Color | Green | |||||||
Size | 1600×900×1850 mm | |||||||
Weight | 1400 KG |  | ||||||
| Bicycle Rim Machine | Alloy Rim Cutting Machine |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |
